How to Make Blueprints for a House: 5 Steps to Start
Why Knowing How to Make Blueprints for a House Changes Everything
Learning how to make blueprints for a house is the single most important step before breaking ground on any custom home or major renovation. Without a solid set of drawings, even the best builders are working blind.
Here is a quick overview of the process:
Define your vision — lifestyle needs, room count, future-proofing
Research local codes — zoning, setbacks, and height limits for your area
Choose your tools — hand-drafting, CAD software, or 3D design apps
Draw the layout — exterior walls first, then interior partitions to scale
Add the details — doors, windows, fixtures, and technical symbols
That five-step sequence is the backbone of this guide.
Blueprints are not just pretty drawings. They are the legal and technical roadmap that guides every trade — framing, plumbing, electrical, HVAC — from the first stake in the ground to the final certificate of occupancy. As one architect puts it, "sketching rooms is easy — producing a plan set that holds together at scale, reads clearly to someone else, and still works once doors, stairs, windows, structure, and code enter the picture is different work."
For homeowners in High Springs, Alachua, Gainesville, Newberry, and the Town of Tioga, this process comes with an extra layer of local complexity: Florida's wind load requirements, Alachua County setback rules, and regional zoning classifications all have to be baked into your drawings from day one.
We are Stanley and Mary Ann Crawford of Stanley Crawford Construction, Inc., a premier custom home builder in Gainesville, Alachua, High Springs, Newberry, and the Town of Tioga. After decades of building custom homes across North Central Florida, we know exactly where homeowners get stuck — and how to help you move forward with confidence.
Understanding the Basics: Floor Plans vs. Full Blueprints
Before we dive into the drafting table, we need to clear up a very common point of confusion. Many people use the terms "floor plan" and "blueprint" interchangeably, but they are actually very different things.A floor plan is just a single overhead 2D drawing showing room relationships, wall locations, and basic doors and windows. It is a map of horizontal movement.
A full blueprint set, however, is a comprehensive package of technical construction documents. When we talk about how to make blueprints for a house, we are talking about creating a coordinated set of architectural drawings that include:
- Site Plans: Showing where the home sits on your lot, including setbacks, driveways, and local topography.
- Floor Plans: Scaled, detailed layouts for every level of the home.
- Elevations: Flat, 2D exterior views of all four sides of the house, showing heights, roof pitches, and exterior materials.
- Structural Sections: Vertical cross-sections that slice through the house to reveal internal framing layers, foundations, and wall assemblies.
- Mechanical, Electrical, and Plumbing (MEP) Layouts: Highly specialized schematics showing where your electrical panel, light switches, HVAC ducts, plumbing stacks, and water lines will run.
Without these extra layers, a simple floor plan is just a sketch; it is not a buildable set of construction documents.
Why You Should Know How to Make Blueprints for a House Before Building
If you are planning to build a custom home in North Central Florida, taking the time to understand the blueprint creation process pays massive dividends in three key areas:Structural Integrity: Your plans must translate to real-world physics. Understanding how walls align vertically ensures that load-bearing points stack properly, keeping your home structurally sound.
Permitting: Building departments in Alachua, Gainesville, and Lake City will not issue a permit based on a simple floor plan. They require stamped, highly detailed blueprints that prove your design meets local building codes.
Cost Control: Vague drawings lead to guesswork on the job site. Guesswork leads to change orders, and change orders quickly blow your budget. Clear blueprints lock in your material lists and labor expectations early.
To explore this further, you can read our A-Z Guide to House Building Plans and learn more about how lines on paper translate to physical structures in From Lines to Layouts A Guide to Design Drawings in Construction.
How to Make Blueprints for a House: The 5-Step Guide
Whether you choose to draft by hand or use modern computer-aided design (CAD) software, the step-by-step drafting sequence remains the same. Following a disciplined design process is the secret to turning a loose floor plan layout into construction-ready plans.Step 1: Define Your Vision and Lifestyle Needs
Every great home starts with a design brief. Long before you draw your first wall, you must define how your family actually lives. In July 2026, home design is heavily focused on flexibility, sensory comfort, and energy efficiency.Ask yourself:
- How long do you plan to stay in this home? If it is a forever home, you must prioritize future-proofing elements like wider hallways, zero-entry showers, and main-floor primary suites.
- What are your daily routines? Do you need a smooth transition from the garage through a mudroom to the kitchen?
- How should rooms relate to one another? Establishing proper room adjacencies — such as keeping quiet bedrooms away from noisy living areas — is critical.
To help organize your thoughts before putting pencil to paper, check out our Designing Your Dream Home The Ultimate Questionnaire Guide.
Step 2: Research Local Zoning Laws and Building Codes
The most beautiful design in the world is useless if it is illegal to build on your lot. Before drafting, visit your local building department in Gainesville, Newberry, or Alachua to pull the specific zoning ordinances for your parcel.You must identify:
- Setback Requirements: The minimum distance your house must sit from the front, rear, and side property lines.
- Height Limits: Maximum allowable building height, which is particularly strict in certain historic or preservation zones in North Central Florida.
- Lot Coverage Rules: The maximum percentage of your lot that can be covered by impervious surfaces (your roof, driveway, patio, etc.).
Gainesville zoning laws, for example, vary wildly depending on whether your property is classified as Single-Family Residential (RSF) or Agricultural (AGR). For a detailed look at navigating this initial stage, consult our A Practical Guide to Custom Home Design Process.
Step 3: Choose Your Tools and Learn How to Make Blueprints for a House
Now, you have to decide how you are going to draw. You have three main paths: traditional hand-drafting, consumer-grade software, or professional CAD systems.If you are a beginner, simple online blueprint makers can help you visualize your layout. Tools like SmartDraw (used by over 85% of the Fortune 500) and Planner 5D offer massive libraries of drag-and-drop symbols and furniture. RoomSketcher, which boasts a stellar 4.4/5 rating across major review platforms, and Cedreo, backed by over 20 years of home design software experience, allow you to easily draw 2D layouts and instantly generate 3D visualizations.
For more details on finding the right platform for your skill level, read our articles on Unleash Your Inner Architect Top Tools to Design Your Own House Blueprints and Design a Blueprint Like a Pro with These Simple Free Tools.
Step 4: Map Out the Layout and Draw the Walls
Once your tools are ready, it is time to start drawing. Always start from the outside and work your way in.First, draw your exterior walls to lock in the home's footprint. Next, draw your interior partitions to define individual rooms, hallways, and closets.
Here is where many DIY designers make a major technical mistake: they draw walls as single thin lines. In the real world, walls have thickness.
Standard residential exterior walls are typically drawn at least 6 inches thick to accommodate structural framing and insulation. Interior walls are typically drawn at least 3.5 inches thick to reflect actual framing dimensions (remember, a nominal 2x4 stud is actually 3.5 inches wide, and a 2x6 is actually 5.5 inches wide).
For a deeper dive into this technical phase, refer to How to Draw Your Own House Blueprints: Architect’s Step-by-Step Guide | ArchitectureCourses.org.
Step 5: Add Openings, Fixtures, and Technical Symbols
With your walls locked in, you can now add the architectural details that make the blueprint readable to a construction crew:- Doors: Draw doors with their specific door swings to make sure they do not collide with walls, vanities, or other doors.
- Windows: Place windows strategically for natural light and cross-ventilation, and compile them into a window schedule showing exact sizes.
- Fixtures & Appliances: Place kitchen counters, bathroom vanities, toilets, and major appliances to scale to verify that you have proper clearances.
- Technical Symbols: Add standard symbols for electrical outlets, light switches, plumbing stacks, and HVAC vents.
To master these symbols, follow the step-by-step instructions in Make Your Own Blueprint | How to Draw Floor Plans.
Crucial Technical Elements: Scale, Symbols, and Florida Building Codes
When you make blueprints for a house, precision is everything. In the United States, the standard working scale for residential blueprints is the 1/4 inch scale (where 1/4 inch on paper equals 1 foot in the physical world, written as 1/4":1'). Using a consistent scale ensures that your dimensions, furniture clearances, and structural spans are accurate.Standardized symbols are the universal language of construction. Whether you are building in High Springs, Newberry, or the Town of Tioga, a framer, electrician, or plumber must be able to look at your blueprint and immediately identify an outlet, a load-bearing post, or a wet wall.
In Florida, your blueprints must also account for some of the strictest building codes in the nation. Because of our climate, your designs must incorporate:
- Wind Load Requirements: Structures must be engineered to withstand high wind pressures, which dictates how your roof is tied to your walls and how your walls are anchored to your foundation.
- Hurricane Mitigation: This includes specifying impact-resistant windows or hurricane shutters, as well as specific strapping and truss configurations.
To help you decide which drafting path is right for you, here is a quick comparison of hand-drafting versus digital CAD software:
FeatureHand-DraftingDigital CAD SoftwareLearning CurveLow (requires physical coordination)High (requires software training)
PrecisionDependent on draftsman's skillAbsolute (down to fractions of an inch)
Revision SpeedSlow (requires erasing or redrawing)Fast (one-click resizing and moving)
3D VisualizationNone (requires separate sketches)Instantaneous 3D rendering
Permit ReadinessHarder to update for code checksStandard for municipal submission
For a broader look at traditional vs. modern drafting methods, see 3 Ways to Make Blueprints - wikiHow.
Common Mistakes to Avoid When Designing Your Own House Plans
Drawing your own blueprints is highly rewarding, but even minor design oversights can turn into incredibly expensive mistakes once construction begins. Here are the most common pitfalls we see in North Central Florida:- Ignoring Door Swings: Ensure your doors do not block hallways, hit bathroom vanities, or clash with other doors.
- Over-Detailing Too Early: Do not waste hours placing furniture or choosing paint colors before your structural walls, stairs, and plumbing stacks are locked in.
- Skipping Code Checks: Designing a beautiful room layout only to find out it violates local setbacks or egress window codes will force you to completely redesign your home from scratch.
- Poor Plumbing Stacking: Keep your bathrooms, kitchen, and laundry room close to each other or stacked vertically to keep plumbing routes simple, efficient, and cost-effective.
To avoid these costly design traps, read our A Comprehensive Guide to Custom Floor Plans and study the professional drafting guidelines outlined in How to Draw House Blueprints - Detailed Guide | Cedreo.
Frequently Asked Questions About House Blueprints
Can I legally draw my own house blueprints in Florida?
Yes, under Florida's owner-builder exemptions, you can legally draw your own blueprints for your personal residence. However, getting those plans approved for building permits is a different story.Most building departments in Alachua County and surrounding areas require structural elements — such as roof truss layouts, foundation plans, and wind-load calculations — to be signed and stamped by a licensed professional engineer or architect.
While you can draft the initial layout and aesthetic design, you will almost always need a professional builder or engineer to finalize the technical construction drawings. Learn more about these legal distinctions in How To Make A Blueprint For A House | Storables.
What is the standard scale for residential blueprints?

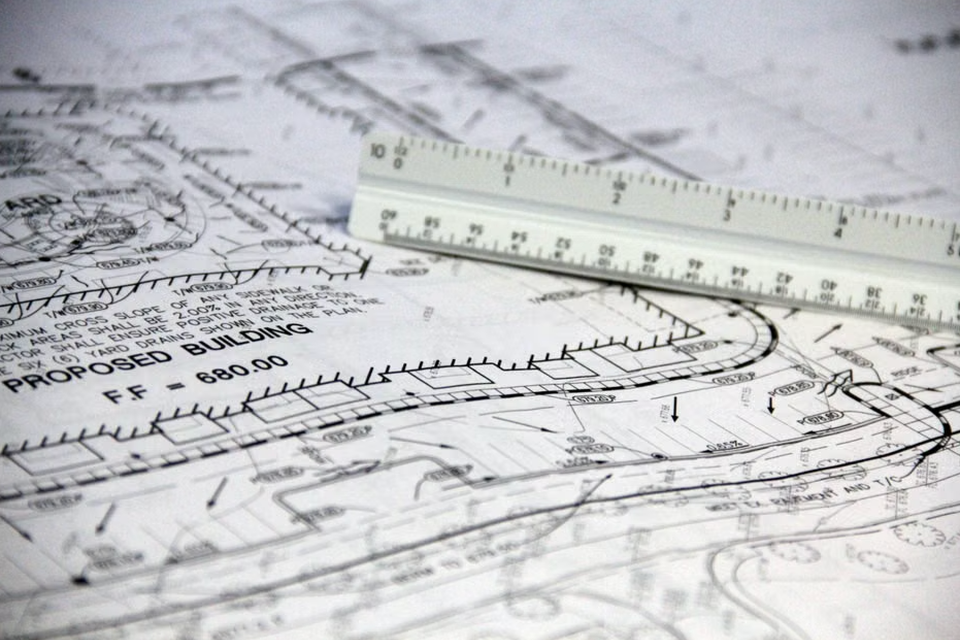

The standard scale is 1/4 inch equals 1 foot (1/4":1'). This means that a wall drawn at 5 inches long on your blueprint represents a 20-foot-long wall in your actual house.When drafting, you must use an architect's scale ruler to maintain this ratio precisely. Blueprints are typically printed on large-format paper, with 24" x 36" (Arch D) being the industry standard, ensuring that all dimension lines, notes, and symbols are clearly legible to the subcontractors on site.
How do I convert a 2D blueprint into a 3D visualization?
Modern design software makes this transition incredibly simple. Programs like Cedreo, RoomSketcher, and Planner 5D allow you to draw in 2D while automatically building a 3D model in the background. With a single click, you can generate photorealistic 3D renderings, test interior finishes, and take interactive virtual walkthroughs of your home before any physical work starts.This is incredibly useful for testing the spatial flow and natural light in your layout. For inspiration on how to leverage these modern design tools, check out our guide on Custom House Designs for the Modern Homeowner.
